D Dome System

D dome system

D Dome System

From: £295.00 (Exc. VAT) - £354.00 - Inc. Vat

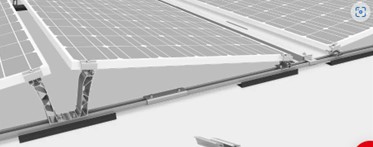

D Dome 4 x panel flat roof system, allows the user to position 4 x solar panels back to back facing east to west on a flat roof.

Classic D dome system installation Video link

Second video:

This is our d dome 6.10 flat roof fixing kit, price excludes solar panels.

Select from product options
SKU: 464c0959bfd3 Categories: , , Tag:

MAKE YOUR SELECTION - D Dome System

Note: Due to the length and overall weight of items within our range of fixing kits, specialized couriers are used, resulting in slightly higher delivery costs and times, subject to courier availability. We aim to ship items within 48 hours of order time.
For more information, you can read through our Delivery Policy

ImageVariationPrice (exc. VAT)QuantityStatus-
D Dome system2 panels x 1 row fixing kit£295.00
In Stock Add to basket
D Dome system4 panels x 1 row fixing kit£595.00
In Stock Add to basket
D Dome system6 panels x 1 row fixing kit£875.00
In Stock Add to basket
D Dome system8 panels x 1 row fixing kit£1,095.00
In Stock Add to basket
D Dome system10 panels x 1 row fixing ki£1,395.00
In Stock Add to basket
D Dome system12 panels x 1 row fixing kit£1,695.00
In Stock Add to basket
D Dome system4 panels x 2 rows fixing kit£495.00
In Stock Add to basket
D Dome system8 panels x 2 rows fixing kit£895.00
In Stock Add to basket
D Dome system12 panels x 2 rows fixing kit£1,295.00
In Stock Add to basket

Description

Solar panel D Dome 6.10 system

flat roof fixing incorporating a dual multi axis solar panel assembly kit that conforms to wind loading calculations when using the K2 design software.

Please note.

  • When using this system on a flat roof, it is imperative that the slope is no more than 3°
  • You will also loose 600mm on four sides to remove turbulent air stream, which creates up-drafting.

Ideal for un-limited space flat roofs.

Ideally we would need to know the postcode for the installation, layout, modules dimensions, building height, roof covering material, parapet wall height, to deliver the correct holding accessories they would need as well as the basic kit.

Classic D dome system installation Video link

These kits are priced to use your own panel types.
We need to know the size of panels being used, plus frame color.
Kits have to be held in position using ballast of either sand bags or concrete blocks. If flat roof is over 5° inclination, then this has to be held in place using permanent fixtures.



Data

2 x panels x 1 row fixing kit: = 2 x 2.25m base rail c/w 6 x rubber feet + 8 x ballast dome + 4 x back & front D dome peak + 8 x slot nuts + 8 x 20mm Allen screws + 8 x end clamps 30-43mm + 2 x mid clamps 30-43mm + 4 x cable manager + 1 x lightning protection clamp.

4 x panels x 1 row fixing kit: = 4 x 2.25m base rail c/w 12 x rubber feet + 16 x ballast dome + 8 x back & front D dome peak + 16 x slot nuts +16 x 20mm Allen screws + 8 x end clamps 30-43mm + 4 x mid clamps 30-43mm + 8 x cable manager + 1 x lightning protection clamp + 2 rail joiners.

4 x panels x 2 rows fixing kit: = 3 x 2.25m base rails c/w 9 x rubber feet + 16 x Ballast dome + 6 x back & front D dome peak + 12 x slot nuts + 12 x 20mm Allen screws + 8 x mini end clamps 30-43mm + 4 x mid clamps 30-43mm + 8 x cable manager + 2 x lightning protection clamp.

6 x panels x 1 row fixing kit: = 6 x 2.24m base rail c/w 18 x rubber feet + 24 Ballast dome + 12 x back & front D dome peak + 24 x slot nuts + 24 x 20mm Allen screws + 8 x end clamps 30-43mm + 8 x mid clamps 30-43mm + 12 x cable manager + 1 x lightning protection clamp + 4 rail joiners.

8 x panels x 1 row fixing kit: = 8 x 2.25m base rail c/w 24 x rubber feet + 32 Ballast dome + 16 x back & front D dome peak + 32 x slot nuts +32 x 20mm Allen screws + 8 x end clamps 30-43mm + 12 x mid clamps 30-43mm + 16 x cable manager + 1 x lightning protection clamp + 6 rail joiners.

8 x panels x 2 rows fixing kit: = 6 x 2.25m base rail c/w 18 x rubber feet + 32 x Ballast dome + 12 x back & front D dome peak + 24 x slot nuts + 24 x 20mm Allen screws + 16 x end clamps 30-43mm + 8 x mini mid clamps 30-43mm + 16 x cable manager + 2 x lightning protection clamp + 3 rail joiners.

10 x panels x 1 row fixing kit: = 10 x 2.25m rail c/w 30 x rubber feet + 40 x Ballast dome + 20 x back & front D dome peak + 40 x slot nuts + 40 x 20mm Allen screws + 8 x end clamps 30-43mm + 16 x mid clamps 30-43mm + 20 x cable manager + 1 x lightning protection clamp + 8 rail joiners.

12 x panels x 1 row fixing kit: = 12 x 2.35m base rails c/w 36 x rubber feet + 24 x back & front D dome peak + 48 x slot nuts + 48 x 20mm Allen screws + 8 x end clamps 30-43mm + 20 x mid clamps + 24 x cable manager + 1 x lightning protection clamp + 10 rail joiners.

12 x panels x 2 rows fixing kit: = 9 x 2.25m base rail c/w 27 x rubber feet + 48 x Ballast dome +18 x back & front D dome peak + 36 x slot nuts + 36 x 20mm Allen screws + 24 x end clamps 30-43mm + 12 x mid clamps 30-43mm + 24 x cable manager + 3 x lightning protection clamp + 6 rail joiners.
