DBS ground mounted system

From: £250.00 (Exc. VAT) - £300.00 - Inc. Vat

Select from product options

We offer a non-foundation ground mounted kit to match localized conditions. Available in 2-18 module fixings, with extension ground pole kit as an extra. We also offer concrete pad fixing foundation adaptions. These kits are for standard sized pv panels.

These kits are ideal for PV panels @ width of 1050mm. If you have larger solar panels, then you need to add the Extension kits to increase the overall size. As we now provide extension kits to encompass larger sized PV panels.

MAKE YOUR SELECTION - DBS ground mounted system

Note: We strive to fulfill pre-orders as promptly as possible, though delivery times may vary.

ImageProduct OptionPrice (exc. VAT)Quantity-
Ground mounted non foundation PV fixing system17 panels non foundation kit, ideal width of 1050mm, larger will need extension kite£2,950.00
Pre-Order
Ground mounted non foundation PV fixing system50 panel (single portrait) non foundation ground mounting kit, to suit 445w PV panels£10,500.00
Pre-Order
Ground mounted non foundation PV fixing system18 panels double landscape non foundation, to suit 545w PV panels£3,425.00
Pre-Order
Ground mounted non foundation PV fixing systemextension pack (Non Foundation Type)£250.00
Pre-Order
Ground mounted non foundation PV fixing system2 panels non foundation kit, ideal for width of 1050mm, larger will need extension kit£450.00
Pre-Order
Ground mounted non foundation PV fixing system8 panels non foundation kit, ideal width of 1050mm, larger will need extension kit£1,268.00
Pre-Order
Ground mounted non foundation PV fixing system6 panels non foundation kit, ideal for width of 1050mm, larger will need extension kit£951.00
Pre-Order
Ground mounted non foundation PV fixing system12 panels non foundation kit, ideal width of 1050mm, larger will need extension kit£1,950.00
Pre-Order
Ground mounted non foundation PV fixing system4 panels non foundation kit, ideal for width of 1050mm, larger will need extension kit£634.00
Pre-Order
Ground mounted non foundation PV fixing system14 panels non foundation kit, ideal width of 1050mm, larger will need extension kit£2,495.00
Pre-Order
Ground mounted non foundation PV fixing system10 panels non foundation kit, ideal width of 1050mm, larger will need extension kit£1,902.00
Pre-Order
Ground mounted non foundation PV fixing system16 panels non foundation kit, ideal width of 1050mm, larger will need extension kit£2,750.00
Pre-Order

Description

We offer a solar panel DBS ground mounted system that allows legs to push into soil. This is an adjustable tilt angle, that is positioned to suit the locational needs of PV installation project.

Our standard system in portrait sections are available in 2 x PV panels up to a maximum joined row of 12 modules. This is in conjunction with PV panels up to 1050mm width. If your PV panels are larger than this (please advise) the size. In these cases, it will be necessary to add an additional extension pack to accommodate the larger PV panel size.

Multiple rows can be placed side by side in double landscape orientation, to suit project needs. As an example scroll down to bottom of this page to see this design to accept 18 number 545w solar panels size.

Depth of posts pushed into ground:

2 panel extension kit:

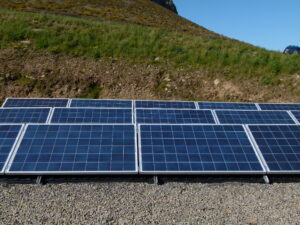

Example of 3 solar panel ground mounted setup:

Should you want to put this system onto concrete pads, then this option is available to order.



As an example see this design to accept 18 number 545w solar panels in landscape orientation. (2279mm length x 1134mm width). Push fit only option. See drop down menu for costs.
