DBS805 Solar Streetlight

Description

Dragons Breath Solar DBS805 solar streetlight.

We are pleased to announce the latest solar street lighting system to be designed and produced in the UK for uses at any location on Earth.

This unique solar lighting system has the ability to be positioned in such a way that the angle of the solar panel can match any location.

This product can be retro fitted onto NEW or existing 76mm, 89mm or 114mm diameter columns and posts.

The luminary can be set to perform a wide range of duties taking the maximum solar irradiance at each location. The DBS805 luminary can be set by us in our factory to deliver illumination at dusk each day 365 days per year. This works on a dusk until dawn program, allowing the energy in battery captured by the suns energy during daylight hours to be used in a calculated method allowing the light distribution to be used when needed. By way of the DBS805 PIR sensor, pedestrians or vehicles can be picked up by sensor to make the light engage in a number of ways. This can be with the luminary be set to only operate when needed, (Zero output until required) or the sequence can be set on a lower background value, until within 10m radius of the sensor. This will then illuminate to 100% value for a pre-determined time period. The light output @ 145lw/m can also be adjusted by us to provide anything from 6w output up to 30w output value at a maximum of 4,350lm.

DBS805-60 for locations that require a high lux level, we offer this to provide a greater lux performance over longer time periods. This light has been developed for either locations that do not achieve a high degree of irradiance, or require the luminary to provide a greater output than normally would be associated with the standard setting. This luminary can be set up to 60w output if needed. We would insist that this system was only mounted onto 114mm diameter columns.

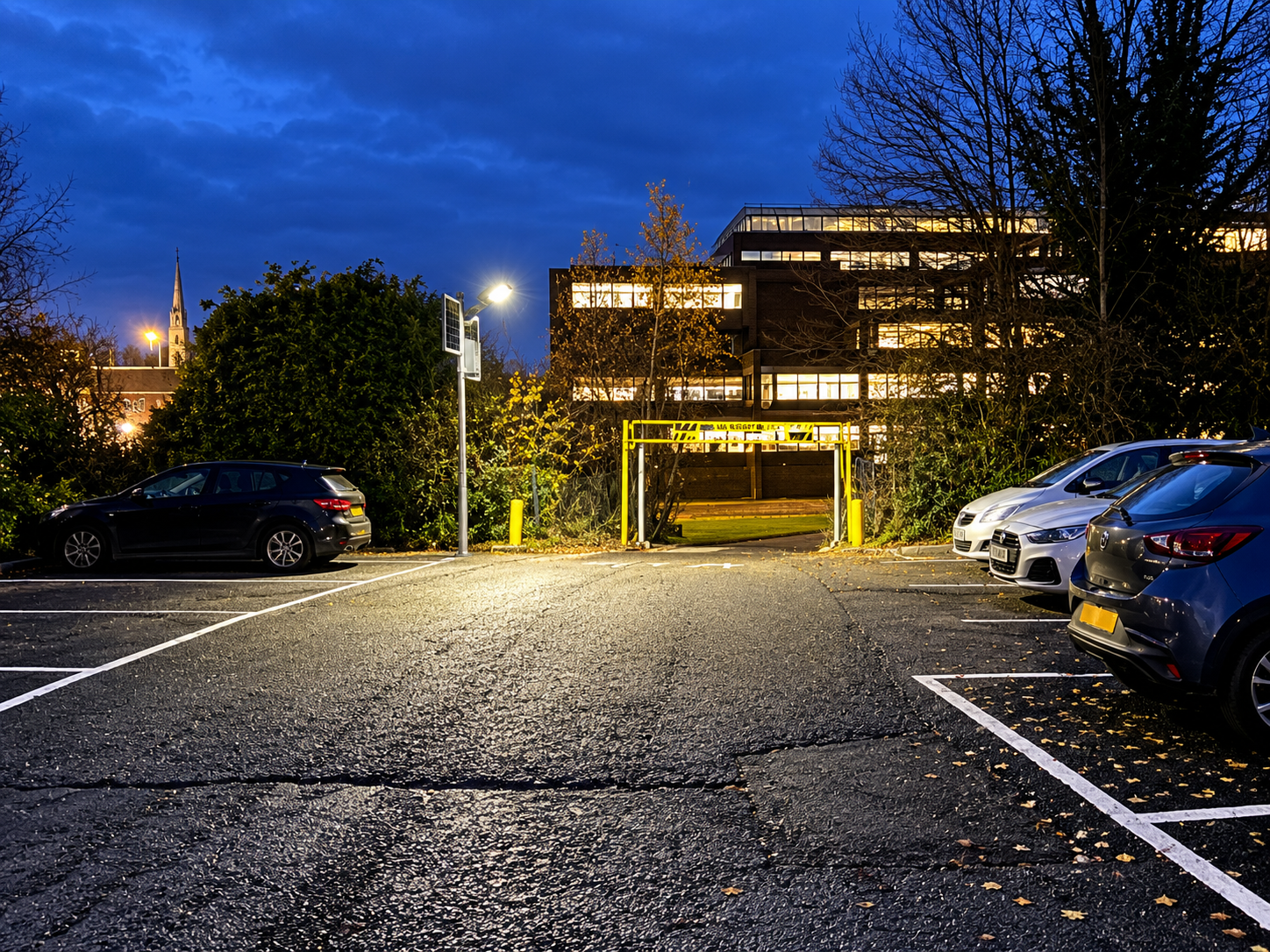

The luminary because of its light weight can be doubled up for car parks and similar locations where the column needs to house 2 separate Lighting systems. This can be done using a minimum column size of 114mm.

If you have a specific project in mind, please give us a call to discuss the options. For a look at the other street lighting systems we offer, you can head to the following link : Solar Street Lights

When using 76mm, 89mm and 114mm columns.

The following should be observed.

As a guide when using suitable existing sized columns, as the material age and condition may be unknown. Our DBS805 solar lighting system in the UK, should be positioned at maximum heights with the solar panels being:

• 3m above ground level for 76mm diameter tubes
• 4m above ground level for 89mm diameter tubes
• >6.5m above ground level for 114mm diameter tubes

As you will understand the age, condition and depth of existing columns should also be considered.

When installing new columns, these are of a known material specification, therefore these can be positioned on the following sized posts:

• 76mm diameter columns @ 3.0m above ground level
• 89mm diameter columns @ 4m above ground level
• 114mm diameter columns @ 6.5m above ground level

DBS805-dual range is now available in a dual luminary option for locations such as car parks, that require a central column to hold a double light unit. These are only available when affixed onto new columns. The luminary output can be set to match the requirements of the location. See our illustration below. Luminary can be positioned in a 360° circumference around the column to point North/South or East/West as an example or any degree in between.

The luminary arm can be positioned above or below the solar panels or any position in between.

The size of battery pack and solar panel are to match localized demands, based upon to the output needed from luminary.

DBS805z100 is a solar powered street light, designed by Dragons Breath Solar for international customers.

Manufactured to order, this product is essentially for equatorial regions across the globe, Ideal for when mains power is not available to illuminate outback locations.

Delivering up to 100w illumination values of 14,500lm capacity.
