EasySolar battery kits

Dragons Breath solar are pleased to be able to provide EasySolar battery kits for off grid complete readily assembled system storage. These easy solar battery kits are for off the grid applications, are ready to run 230VAC connections.
Enabling the suns energy powered through solar PV to recharge 12v, 24v and 48v battery
backup systems in remote places. Easysolar battery kits also have connections for 230vac safe auxiliary AC power sources generation when required, for allotments, mobile homes, caravans, cabins, boats and many other situations where a determined amount of 230Vac power is required.

EasySolar battery kits

• 1 x 12/1600/70-16 Victron easy solar system
• 2 x 365w full sized solar panels
• 2 x 165Ah deep cycle batteries  2kwh nominal 12v battery storage system capacity
• 1 x Single pole fused battery disconnection switch
• 1 x NH 200A fuse
• 4 x 5m MC4 extension leads
• 2 x 70Sqmm Battery connection cables @ 300mm
• 1 x 16A Slow burn fuse system
• 1 x 70sqmm cable from switch to battery @ 300mm
• Plus standard on roof Rafter 2 x solar panel fixing kit

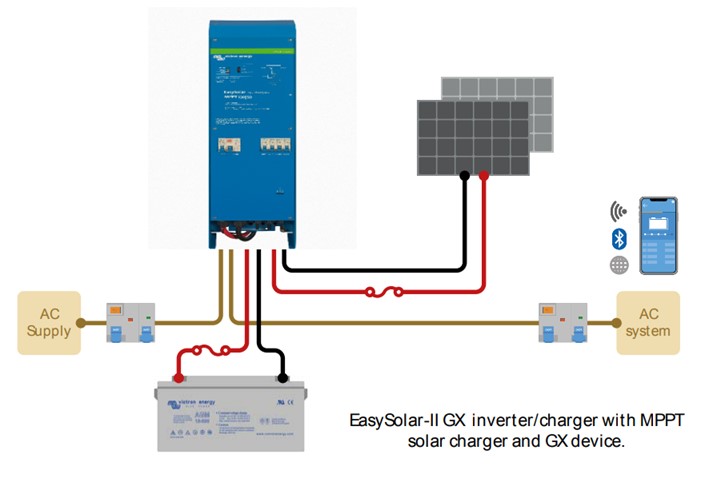

Complete 12v off the grid solar kit

DRAGONS BREATH SOLAR complete 2 solar panel off-grid battery kit 12v @ 230Vac

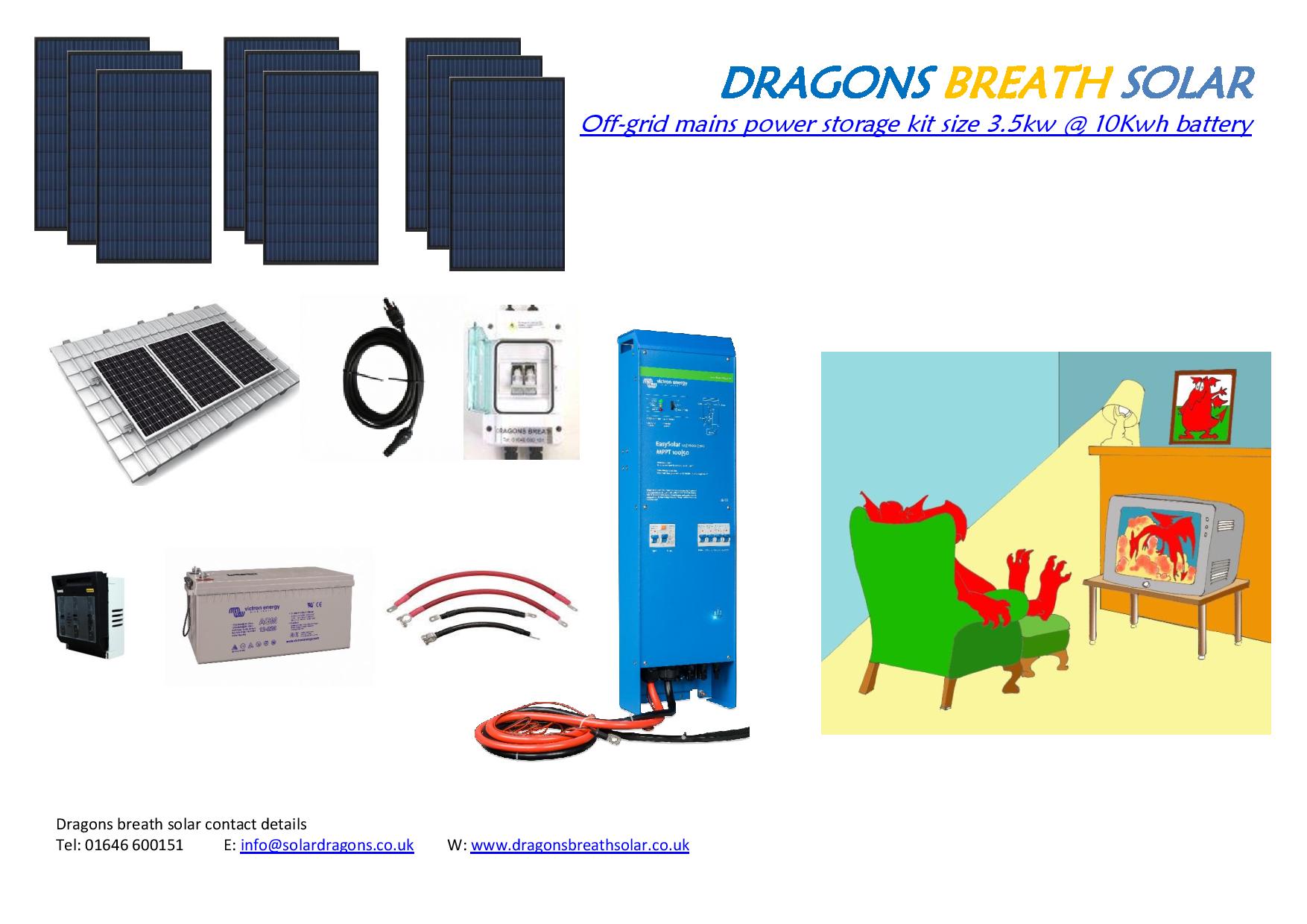

DRAGONS BREATH SOLAR complete off-grid 8 panel battery kit 48v (Pylon battery)

• 1 x 48/5000/70-100 Victron easy solar system
• 8 x 385w full sized solar panels
• 2 x 2.4kwh Pylon deep cycle batteries 4.8kwh nominal 48v battery storage system capacity
• 1 x Single pole fused battery disconnection switch
• 1 x NH 125A fuse
• 3 x 5m MC4 extension leads
• 3 x 50Sqmm Battery connection cables @ 300mm
• 1 x 16A Slow burn fuse system
• 1 x 50sqmm cable from switch to battery @ 300mm
• Plus standard on roof Rafter solar panel fixing kit

These kits are designed for top end off grid 3.5kw nominal energy, and provide the user with a system that is a plug and play installation, c/w circuit drawing layout. We offer the complete system with rafter fixing kit as standard with 4 number deep cycle 200Ah AGM Victron energy batteries and all safety features. This kit can also be used with a lithium ion type battery pack.

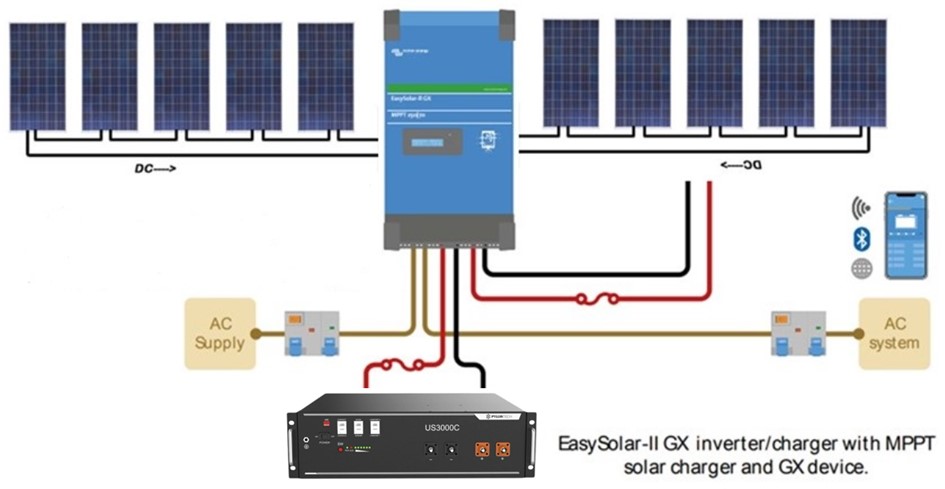

DRAGONS BREATH SOLAR complete off-grid 10 panel battery kit 48v (Lithium battery)

Dragons Breath Solar now offer a nominal off the grid kit using 48v pylon lithium batteries @ 2.4kwh, 3.5kwh, 4.8kwh, 7.0kwh, and 10.5kwh.

1kw Kits include basic flat surface fixings. The 2kw and 4kw systems have basic rafter fixings. 4kw kits are available in AGM supper cycle or lithium battery types. If you require an alternative solar panel fixing method, as these are dependent on the location. These easysolar battery kits are designed for Off the grid, they are complete assembled kits.

Click on this link for details of our full range of FIXINGS FOR SOLAR PANELS

Contact us to ask about any
of these 12, 24 & 48v kits. Email us

If you are thinking of home grid connection then follow these links:

• Grid connected home battery storage kits for NEW SOLAR PANEL INSTALLATIONS

• Grid connected home battery storage kits for EXISTING SOLAR PANEL INSTALLATIONS

Note! depending on location, you may require auxiliary power input to charge easysolar battery kits system during winter periods. This kit offer the user the addition of a plug in, form another source such as diesel generator or shore hookup. Go to this link to view our diy off grid solar power systems
