Slate Solar Fixing Kits

From: £179.22 (Exc. VAT) - £215.06 - Inc. Vat

Select from product options

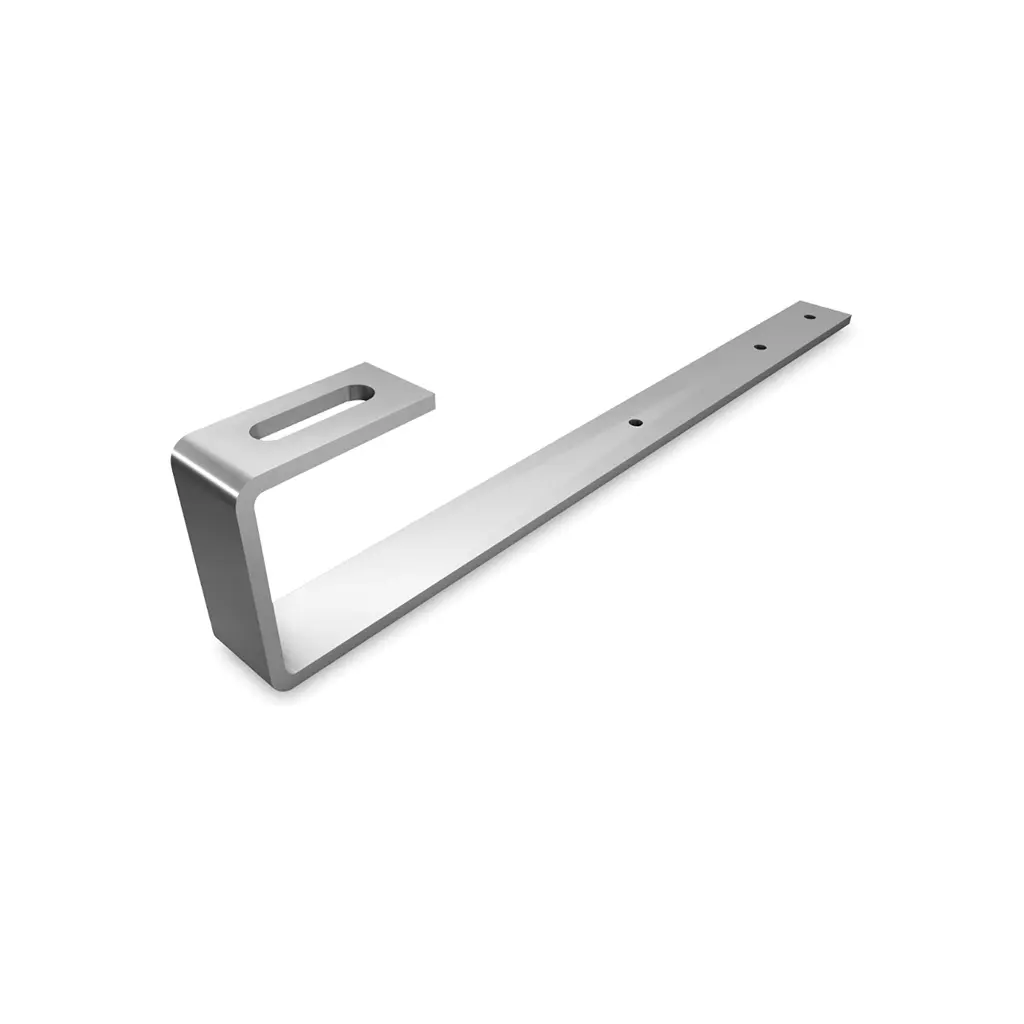

Slate solar fixing kits can be used on man-made and natural slate tiled roofs. Brackets are held in place using 2 x stainless steel screws. Once set at correct height with packing, these can be used with lead soaker to weatherproof the installation.

FIXING CLAMPS ARE AVAILABLE IN BLACK OR SILVER ANODISED FINNISH (PLEASE ADVISE

Alternative kit: Plain Tile Fixing Kits | solar panel roof coverings (dragonsbreathsolar.co.uk)

These kits will accept any size solar PV panels

MAKE YOUR SELECTION - Slate Solar Fixing Kits

Note: Due to the length and overall weight of items within our range of fixing kits, specialized couriers are used, resulting in slightly higher delivery costs and times, subject to courier availability. We aim to ship items within 48 hours of order time.
For more information, you can read through our Delivery Policy

ImageProduct OptionPrice (exc. VAT)Quantity-
K2 Slate Solar Fixing Kit2 panel x 1 row PORTRAIT roof fixing c/w FLASHING£316.30
Add to basket
K2 Slate Solar Fixing Kit1 panel x 1 row LANDSCAPE roof fixing kit c/w FLASHING£230.61
Add to basket
K2 Slate Solar Fixing Kit2 panel x 1 row LANDSCAPE roof fixing kit c/w FLASHING£444.71
Add to basket
K2 Slate Solar Fixing Kit3 panel x 1 row LANDSCAPE roof fixing kit c/w FLASHING£518.94
Add to basket
K2 Slate Solar Fixing Kit1 panel x 1 row PORTRAIT roof fixing kit c/w FLASHING£179.22
Add to basket
K2 Slate Solar Fixing Kit3 panel x 1 row PORTRAIT roof fixing kit c/w FLASHING£376.65
Add to basket
K2 Slate Solar Fixing Kit4 panel x 1 row PORTRAIT roof fixing kit c/w FLASHING£553.96
Add to basket
K2 Slate Solar Fixing Kit5 panel x 1 row PORTRAIT roof fixing kit c/w FLASHING£679.80
Add to basket
K2 Slate Solar Fixing Kit6 panel x 1 row PORTRAIT roof fixing kit c/w FLASHING£781.94
Add to basket
K2 Slate Solar Fixing Kit6 panel x 2 rows PORTRAIT roof fixing kit c/w FLASHING£884.44
Add to basket
K2 Slate Solar Fixing Kit7 panel x 1 row PORTRAIT roof fixing kit c/w FLASHING£876.94
Add to basket
K2 Slate Solar Fixing Kit8 panel x 1 row PORTRAIT roof fixing kit c/w FLASHING£1,079.96
Add to basket
K2 Slate Solar Fixing Kit8 panel x 2 rows PORTRAIT roof fixing kit c/w FLASHING£1,109.93
Add to basket
K2 Slate Solar Fixing Kit9 panel x 1 row PORTRAIT roof fixing kit c/w FLASHING£1,205.88
Add to basket
K2 Slate Solar Fixing Kit10 panel x 2 rows PORTRAIT roof fixing kit c/w FLASHING£1,359.78
Add to basket
K2 Slate Solar Fixing Kit12 panel x 2 rows PORTRAIT roof fixing kit c/w FLASHING£1,583.26
Add to basket
K2 Slate Solar Fixing Kit14 panel x 2 rows PORTRAIT roof fixing kit c/w FLASHING£1,703.97
Add to basket
K2 Slate Solar Fixing Kit16 panel x 2 rows PORTRAIT roof fixing kit c/w FLASHING£1,926.00
Add to basket

Description

SLATE SOLAR FIXING KITS

On-roof standard connection kits in Portrait orientation. Used on slate tile buildings. Kits include all standard equipment parts required, you may require further fixings parts depending on specific location requirements, if in doubt please ask.

Set out in rows of portrait to match your own panels.

ach standard kit includes rails, black end caps, stainless steel rafter fixing brackets, stainless steel fixing screws, slate bracket flashing kit, T bolts and nuts, rail joiners and fixing clamps to match your solar modules.

All parts included in this kit are as follows:

Please check your module size in the ref below, to ensure we pack the correct size mid and end clamps required. Slate Solar Fixing kits:

Note! We will need to know the module size prior to dispatching equipment kit, due to the many different sized solar panels that are now on the market.

PLEASE ADVICE CLAMP SIZE TO MATCH YOUR SOLAR MODULES:

Check your solar panel size before placing a kit order.

Setting out measurements are usually dependent on the roof timbers. You should take a measurement of your roof, as our kits are matched to 450mm spacing. As all UK roofs are different, this is only a guide. Therefore the installer is responsible for all measurements.

Clamp sizes available: 30mm, 34-36mm, 37-38mm, 39-41mm, 42-43mm, (44-50mm clamps are limited stock)

If you do not tell us the SOLAR PANEL SIZE you are using: We will send out universal mid and end clamps. Universal clamps will suit solar panels sizes = 30-43mm



We offer slate solar panel fixing kits based upon 400-450mm rafter spacings. If your roof is different, then please advise. As the amount of brackets could alter depending on the spacing.

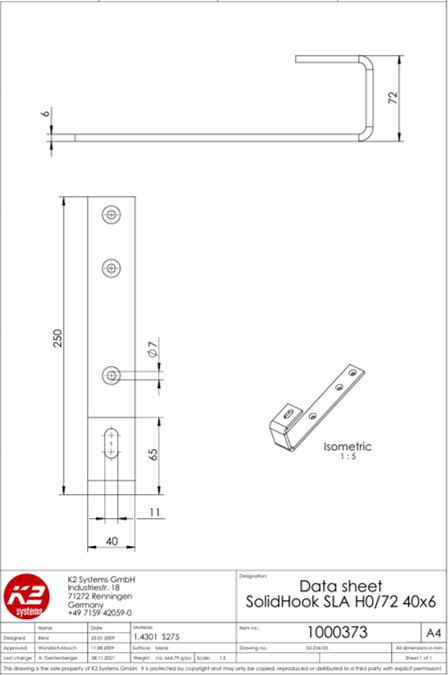

Data

Fixing arrangement example layout, for Standard and Extra Large size solar PV panels.

All of our slate solar panel fixing kits contain these parts, to affix extra larger solar panels.


Slate tile bracket numbers guide with rafter spacing @ 450mm between timbers.


1 panel kit x 1 row SLATE PORTRAIT roof fixing kit: = 4 brackets + 8 wood screws + 4 T bolts + 4 nuts + 1 rail @ 2.5m + 4 rail end caps + 4 universal end clamps + 4 cable tidy clips + 4 cable ties.


1 panel kit x 1 row SLATE LANDSCAPE roof fixing kit: = 5 brackets + 10 wood screws + 5 T bolts + 5 nuts + 2 rails @ 2.5m + 4 rail end caps + 4 universal end clamps + 4 cable tidy clips + 4 cable ties.


2 panel kit x 1 row SLATE PORTRAITE roof fixing kit: = 7 brackets + 14 wood screws + 7 T bolts + 7 nuts + 2 rails @ 2.5m + 4 rail end caps + 4 universal end clamps + 2 universal mid clamps + 8 cable tidy clips + 8 cable ties.


2 panel kit x 1 row LANDSCAPE roof fixing kit: = 8 brackets + 16 wood screws + 8 T bolts + 8 nuts + 2 rails @ 2.5m + 2 rails @ 3.65m + 2 rail connectors + 4 rail end caps + 4 universal end clamps + 2 universal mid clamps + 8 cable tidy clips + 8 cable ties.


3 panel x 1 row PORTRAIT roof fixing kit: = 11 brackets + 22 wood screws + 11 T bolts + 11 nuts + 2 rails @ 3.65m + 4 rail end caps + 4 universal end clamps + 4 universal mid clamps + 12 cable tidy clips + 12 cable ties.


3 panel x 1 row LANDSCAPE roof fixing kit: = 12 brackets + 24 wood screws + 12 T bolts + 12 nuts + 4 rails @ 3.65m + 2 rail connectors + 4 rail end caps + 4 universal end clamps + 4 universal mid clamps + 12 cable tidy clips + 12 cable ties.


4 panel x 1 row PORTRAIT roof fixing kit: = 14 brackets + 28 wood screws + 14 T bolts + 14 nuts + 4 rails @ 2.5m + 2 rail connectors + 4 rail end caps + 4 universal end clamps + 6 universal mid clamps + 16 cable tidy clips + 16 cable ties.


5 panel x 1 row PORTRAIT roof fixing kit: = 15 brackets + 30 wood screws + 15 T bolts + 15 nuts + 2 rails @ 3.65m + 2 rails @ 2.5m + 4 rail connectors + 4 rail end caps + 4 universal end clamps + 8 universal mid clamps + 20 cable tidy clips + 20 cable ties.


6 panel x 1 row PORTRAIT roof fixing kit: = 18 brackets + 36 wood screws + 18 T bolts + 18 nuts + 4 rails @ 3.65m + 4 rail connectors + 4 rail end caps + 4 universal end clamps + 10 universal mid clamps + 24 cable tidy clips + 24 cable ties.


6 panel x 2 rows PORTRAIT roof fixing kit: = 22 brackets + 44 wood screws + 22 T bolts + 22 nuts + 4 rails @ 3.65m + 4 rail connectors + 8 rail end caps + 8 universal end clamps + 8 universal mid clamps + 24 cable tidy clips + 24 cable ties .


7 panel x 1 row PORTRAIT roof fixing kit: = 23 brackets + 46 wood screws + 23 T bolts + 23 nuts + 4 rails @ 2.5m + 2 rails @ 3.65m + 4 rail connectors + 4 rail end caps + 4 universal end clamps + 12 universal mid clamps + 28 cable tidy clips + 28 cable ties.


8 panel x 1 row PORTRAIT roof fixing kit: = 25 brackets + 50 wood screws + 25 T bolts + 25 nuts + 8 rails @ 2.5m + 6 rail connectors + 4 rail end caps + 4 universal end clamps + 14 universal mid clamps + 32 cable tidy clips + 32 cable ties.




8 panel x 2 rows PORTRAIT roof fixing kit: = 28 brackets + 56 wood screws + 28 T bolts + 28 nuts + 8 rails @ 2.5m + 4 rail connectors + 8 rail end caps + 8 universal end clamps + 12 universal mid clamps + 32 cable tidy clips + 4 cable ties


9 panel x 1 row PORTRAIT roof fixing kit: = 27 brackets + 54 wood screws + 27 T bolts + 27 nuts + 6 rails @ 3.65m + 6 rail connectors + 4 rail end caps + 4 universal end clamps + 16 universal mid clamps + 36 cable tidy clips + 36 cable ties.

10 panel x 2 rows PORTRAIT roof fixing kit: = 32 brackets + 64 wood screws + 32 T bolts + 32 nuts + 4 rails @ 3.65m + 2 rails @ 2.5m + 8 rail connectors + 8 rail end caps + 8 universal end clamps + 16 universal mid clamps + 40 cable tidy clips + 40 cable ties.



12 panel x 2 rows PORTRAIT roof fixing kit: = 36 brackets + 72 wood screws + 36 T bolts + 36 nuts + 8 rails @ 3.65m + 6 rail connectors + 8 rail end caps + 8 universal end clamps + 20 universal mid clamps + 48 cable tidy clips + 48 cable ties.


14 panel x 2 rows PORTRAIT roof fixing kit: = 38 brackets + 76 wood screws + 38 T bolts + 38 nuts + 8 rails @ 3.65m + 4 rails @ 2.5m + 8 rail connectors + 8 rail end caps + 8 universal end clamps + 24 universal mid clamps + 56 cable tidy clips + 56 cable ties.


16 panel x 2 rows PORTRAIT roof fixing kit: = 46 brackets + 92 wood screws + 46 T bolts + 46 nuts + 8 rails @ 3.65m + 4 rails @ 2.5m + 8 rail connectors + 8 rail end caps + 8 universal end clamps + 28 universal mid clamps + 64 cable tidy clips + 64 cable ties.
