Solar garden kits

From: £214.00 (Exc. VAT) - £256.80 - Inc. Vat

This flat surface solar panel mounting kit is a low cost option for 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, and 12 panel installations. It just needs to be fixed to concrete lintels and ballast mounted. This is a tilt up system that can be set at angles, 20°, 25° and 30°
Tilt up K2 flat surface solar panel mounting brochure
Tilt up K2 flat surface solar panel assembly instructions
Video

To purchase go to the drop down menu below

Select from product options

MAKE YOUR SELECTION - Solar garden kits

We endeavour to ship all products within 48 hours of order time and on a next day delivery service where possible.
For more information, you can read through our Delivery Policy

ImageProduct OptionPrice (exc. VAT)Quantity-
Ground mounting K2 Vento tiltup system kitKit 11: 11 panel portrait kits, to suit panel length 1386 – 2293 mm, width 950 – 1135 mm£1,165.00
Add to basket
Ground mounting K2 Vento tiltup system kitKit 9: 9 panel portrait kits, to suit panel length 1386 – 2293 mm, width 950 – 1135 mm£945.00
Add to basket
Ground mounting K2 Vento tiltup system kitKit 7: 7 panel portrait kits, to suit panel length 1386 – 2293 mm, width 950 – 1135 mm£765.00
Add to basket
Ground mounting K2 Vento tiltup system kitKit 5: 5 panel portrait kit, to suit panel length 1386 – 2293 mm, width 950 – 1135 mm£665.00
Add to basket
Ground mounting K2 Vento tiltup system kitKit 3: 3 panel portrait kit, to suit panel length 1386 – 2293 mm, width 950 – 1135 mm£275.00
Add to basket
Ground mounting K2 Vento tiltup system kitKit 1: 1 panel portrait kit, to suit panel length 1386 – 2293 mm, width 950 – 1135 mm£215.00
Add to basket
Ground mounting K2 Vento tiltup system kit2 panel LANDSCAPE kit, to suit panel length 1386 – 2293 mm, width 950 – 1135 mm£379.00
Add to basket
Ground mounting K2 Vento tiltup system kit3 panel LANDSCAPE kit, to suit panel length 1386 – 2293 mm, width 950 – 1135 mm£554.00
Add to basket
Ground mounting K2 Vento tiltup system kitKit 10: 10 panel portrait kits, to suit panel length 1386 – 2293 mm, width 950 – 1135 mm£1,106.62
Add to basket
Ground mounting K2 Vento tiltup system kitKit 8: 8 panel portrait kits, to suit panel length 1386 – 2293 mm, width 950 – 1135 mm£903.15
Add to basket
Ground mounting K2 Vento tiltup system kit1 panel LANDSCAPE kit, to suit panel length 1386 – 2293 mm, width 950 – 1135 mm£214.00
Add to basket
Ground mounting K2 Vento tiltup system kitKit 2: 2 panel portrait kit, to suit panel length 1386 – 2293 mm, width 950 – 1135 mm£243.56
Add to basket
Ground mounting K2 Vento tiltup system kitKit 4: 4 panel portrait kit, to suit panel length 1386 – 2293 mm, width 950 – 1135 mm£423.44
Add to basket
Ground mounting K2 Vento tiltup system kitKit 6: 6 panel portrait kit, to suit panel length 1386 – 2293 mm, width 950 – 1135 mm£695.09
Add to basket
Ground mounting K2 Vento tiltup system kitKit 12: 12 panel portrait kits, to suit panel length 1386 – 2293 mm, width 950 – 1135 mm£1,260.18
Add to basket

Description

An easy construct solar ground mounted or flat surface fixing, the K2 Vento tiltup system is ideal for professional and DIY projects, this is used for securing solar panels onto a pre laid suitable flat surface.

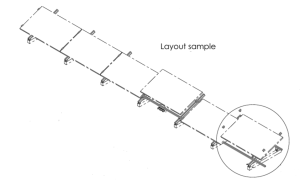

These kits are designed for installation of multiples of 3 solar panels in portrait orientation. If you required landscape orientation, then we need to know the length of panels being used to calculate the parts needed. These can be positioned permanently onto concrete foundations or ballasted onto appropriate platform.

We supply all parts to build K2 Vento framework which are included in each kit. Note! we do not include foundation blocks.

This solar ground mounted kit will not include solar panels, as these can be purchased separately.

This system is designed to suit solar panels which now have many varying dimensions. Therefore, we need to know what size and the quantity of panels you intend to use, to allow us to provide a cost based upon this information.

If you intend to put the framework onto a flat roof, then it is essential to check that the roof structure has sufficient residual load capacity and that the pressure capacity of the roof insulation (where present) is not exceeded

  • Kits are suitable for framed modules with a frame height 30 – 50 mm
  • Permissible module dimensions: length 1386 – 2293 mm, width 950 – 1135 mm

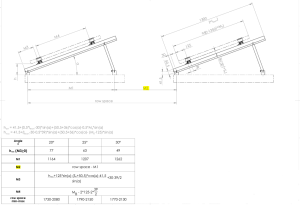

  • The inclination of the K2 Vento TiltUp system is either 20, 25 or 30°
  • A minimum distance to the roof edge of 600 mm must be observed

Therefore we offer as standard this tilt up Vento system in multiples of 3 panels with a maximum of 12 panels in one combined fixture.

See option below for solar ground mounted installations. This can be fixed onto pre-laid concrete foundations or railway sleepers or similar.

Alternative 10 panel 4kw ground mounting Vento kits: 4kw Ground Solar Kit on concrete foundation | Dragons Breath Solar

1 panel through to 12 panels portrait or landscape Vento kits: Solar panel flat surface fixing kit | ground mounted or flat roof K2 vento tiltup system (dragonsbreathsolar.co.uk)

16 panel P-Rack ground mounting kits: K2 P-Rack System – Dragons Breath Solar
