Solar heating controller

From: £136.30 (Exc. VAT) - £163.56 - Inc. Vat



Solar pump controller.

Controlling the temperature from the roof collectors to the cylinder can often rise to
excessive levels during the summer months. A high quality pump management
system is required to automatically program and adjusts the pump station temperatures
which control the movement of glycol fluids around closed pipe work. Enabling a
constant flow used when heating water to the desired programed temperatures. Solar heating controller is designed to automatically adjusts temperatures and pump speed in collectors to the desired levels automatically.

We offer several different types of controller.

  • AX HE model provides the easiest solution when controlling solar heating systems, with adjustable temperature plus 1 PWM outlet to manage solar pump.

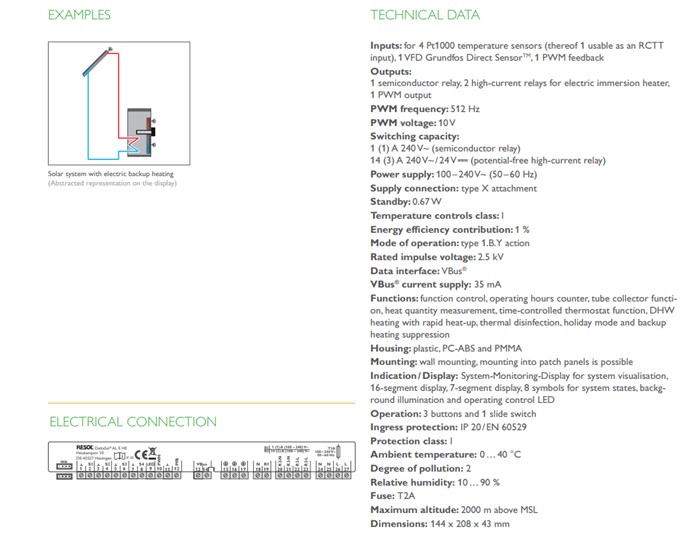

  • AL E HE model provides a standard system layout pump control and electric backup option, plus 1 x PWM output. It also has the option of connecting a 3kw immersion heater.

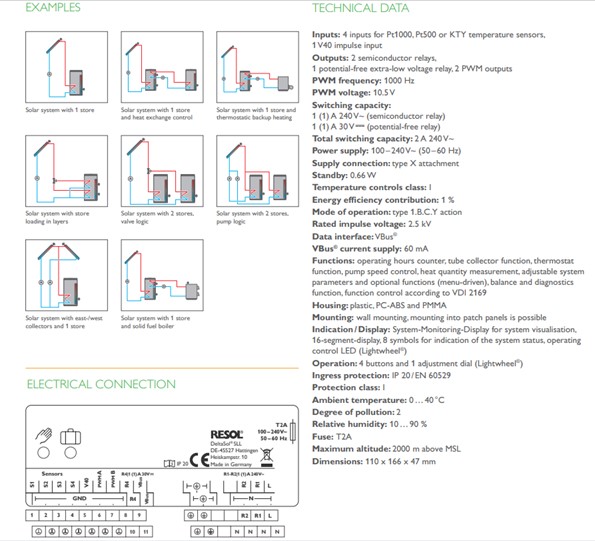

  • SLL model is a small controller for entry level solar thermal systems.

  • SL model offers a simple and reliable programing Β with 2 x PWM outlets for high efficiency.

  • CS 4 model is used for auto speed control of small pumps used within solar hot water heating systems. 1 x PWM + 1 sensor input.

  • CS plus model provides auto speed control of medium duty pumps used within solar hot water heating systems. 2 x PWM + 1 sensor input.
