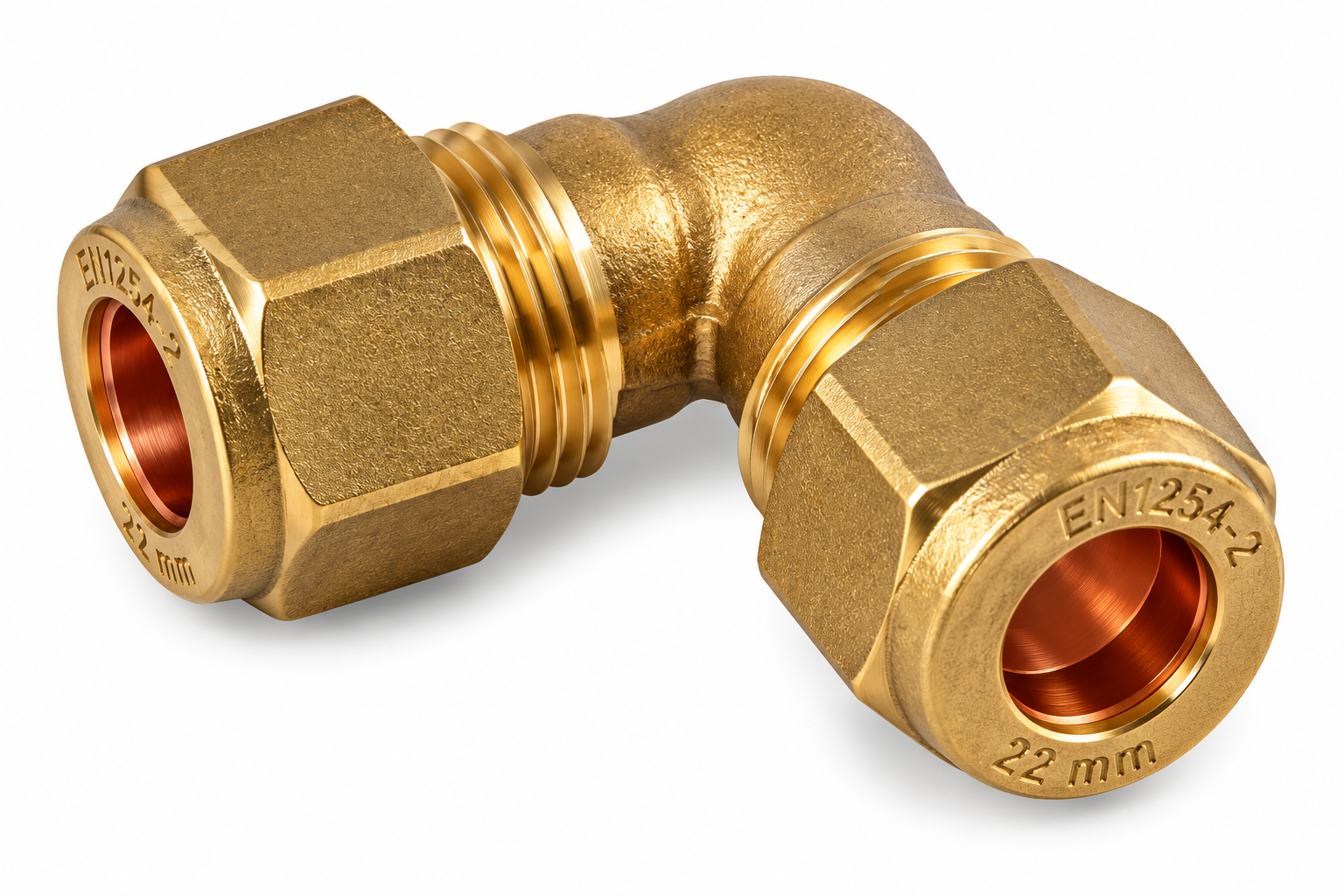

90 degree compression solar tube elbows are made from DZR bronze. This is a high temperature fitting that can specifically be used for the solar hot water heating industry, where glycol fluids are used. DZR bronze will not deteriorate due to this high quality material specification.
These 90 degree solar tube elbows are available in 15mm and 22mm compression types for leak free connections always use the tube inserts.
15mm compression insert / 22mm compression insert
