Small solar panels

From: £98.75 (Exc. VAT) - £118.50 - Inc. Vat

Dragons Breath carry extensive stocks of small solar panels. These are specifically designed for battery charging, with the cell structure determined to work @ 18.3v nominal voltage. Available with or without charge controllers and cables to match the individual small solar panel.

To make a purchase, select from the drop down cart below:

Clear

Description

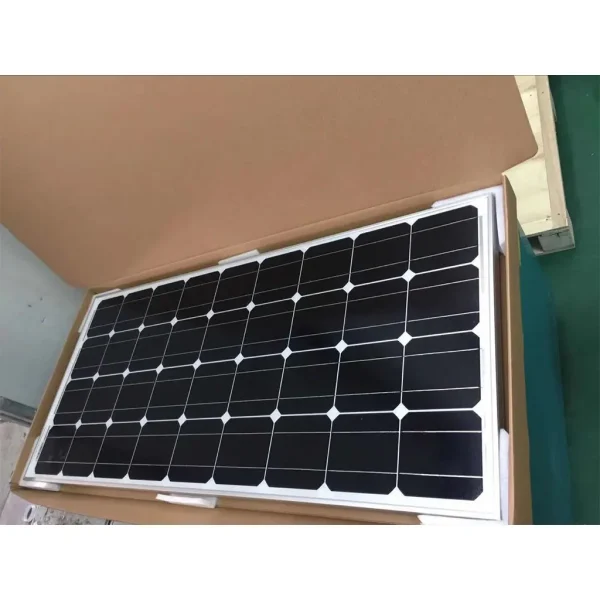

Small 12 volt solar panels designed for battery charging, these small 12v solar panels are available in 115w, 140w, 160w and 175w sizes. They offer the user the ability to charge any 12v battery, this is done by choosing the correct size charge controller to maximize the flow of generated power from the PV panel back to the battery. By using the correctly sized equipment it will prevent your battery from being over charged.

Small Small solar panels can generate varying amounts of power depending on what size you prefer.

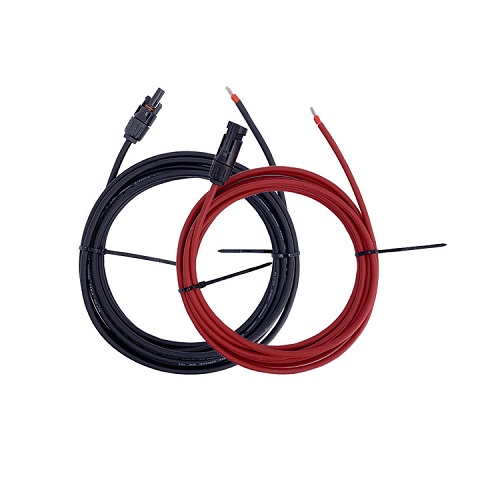

We offer small solar panels with or without controller through drop down menu above. This will also include the battery cables and extension to solar panel connections from the controller.

Small solar panels 12 volt

Can be used on motor homes, caravans, boats, allotments and any other similar areas. Where mains power is not available and where batteries need to be kept up to full charge each day or in case of emergency. Dragons Breath offer a range for hundreds of 12 volt battery charging solutions in commercial and domestic applications.

Description off-grid 12v small solar panels | Controller needed

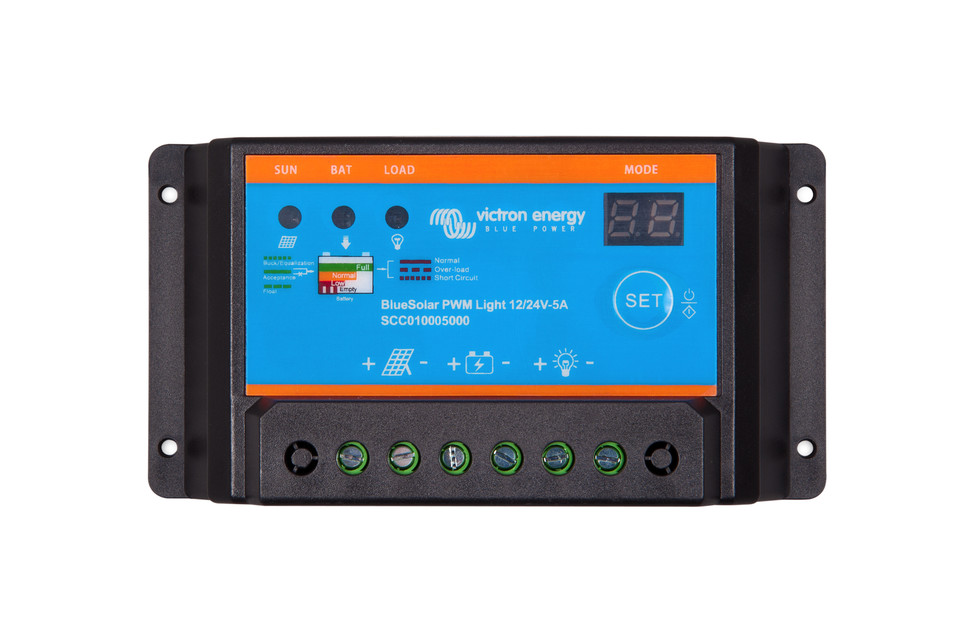

115Wp Off-grid solar panel (Victron) Bluesolar lite or Bluesolar LED display
140Wp Off-grid solar panel (Victron) Bluesolar lite or Bluesolar LED display
160Wp Off-grid solar panel (Luxor) Bluesolar lite or Bluesolar LED display
175Wp Off-grid solar panel (Victron) Bluesolar lite or Bluesolar LED display



Type off-grid
Max power
(wp)
Dimensions
(mm)
cells
Imp
(A)
Vmp
(V)
Isc
(A)
Voc
(V)
Weight
(kg)
mono 140 1250 x 668 x 30 36 7.22 19.4 8.05 23.60 9
mono 160 1482 x 542 x 35 36 8.56 18.73 9.06 22.98 11.5



Type off-grid
Max power
(wp)
Dimensions
(mm)
cells
Imp
(A)
Vmp
(V)
Isc
(A)
Voc
(V)
Weight
(kg)
poly 115 1015 x 668 x 30 36 6.08 18.94 6.56 22.73 8
poly 175 1485 x 668 x 30 36 9.56 18.3 10.24 21.9 12



Read our short blog about what we consider to be the best small solar panels.

Data Sheets
